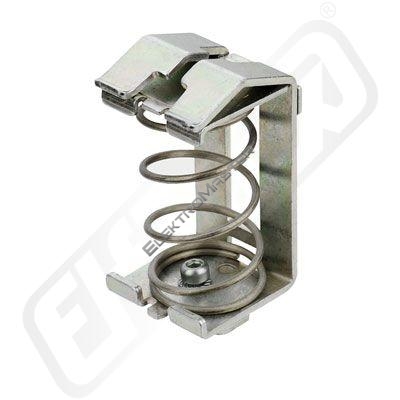

Svěrka WEIDMULLER KLBUE 15-32 CPF |
| The shield connections automatically adjust themselves using the spring principle to deal with temperature related cross-sectional changes and are suitable for applications subject to vibrations. The large contact surface area and the short connection length to the rail or mounting plate ensures optimal contact over a wide frequency band. The ensures that the assembly is simple and secure. Shield connection terminal, Pitch, in mm: 36.00, Cable diameter, max.: 32 mm, Steel |
|
|
| U nás zaplatíte s DPH | Kč |
| Cena bez DPH | 486 Kč |
| Kód: | 10.435.612 |
| EAN: | 4032248044443 |
| Značka | WEIDMÜLLER |
| Záruční doba | |
|
| Popis | |
The shield connections automatically adjust themselves using the spring principle to deal with temperature related cross-sectional changes and are suitable for applications subject to vibrations. The large contact surface area and the short connection length to the rail or mounting plate ensures optimal contact over a wide frequency band. The ensures that the assembly is simple and secure. Shield connection terminal, Pitch, in mm: 36.00, Cable diameter, max.: 32 mm, Steel
- Způsob montáže:Přímá montáž
- Výška:32,0 mm
- Šířka / rozteč mřížky:33,5 mm
- Přípustný průměr kabelu:32,0 mm
- Provedení zkoušené proti explo:Ano
|
|
