Svěrka WEIDMULLER KLBUE 10-20 |

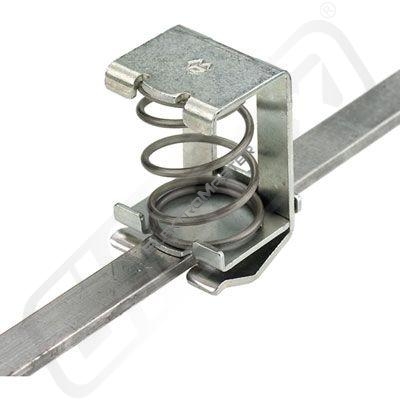

| The shield connections automatically adjust themselves using the spring principle to deal with temperature related cross-sectional changes and are suitable for applications subject to vibrations. The large contact surface area and the short connection length to the rail or mounting plate ensures optimal contact over a wide frequency band. The ensures that the assembly is simple and secure. Shield connection terminal, Pitch, in mm: 25.00, Cable diameter, max.: 20 mm, Steel |
|
|
| U nás zaplatíte s DPH | Kč |
| Cena bez DPH | 166 Kč |
| Kód: | 10.432.915 |
| EAN: | 4008190151874 |
| Značka | WEIDMÜLLER |
| Záruční doba | |
|
| Popis | |
The shield connections automatically adjust themselves using the spring principle to deal with temperature related cross-sectional changes and are suitable for applications subject to vibrations. The large contact surface area and the short connection length to the rail or mounting plate ensures optimal contact over a wide frequency band. The ensures that the assembly is simple and secure. Shield connection terminal, Pitch, in mm: 25.00, Cable diameter, max.: 20 mm, Steel
- Způsob montáže:Přípojnice
- Výška:26,0 mm
- Šířka / rozteč mřížky:24,0 mm
- Přípustný průměr kabelu:20,0 mm
- Provedení zkoušené proti explo:Ano
|
|
